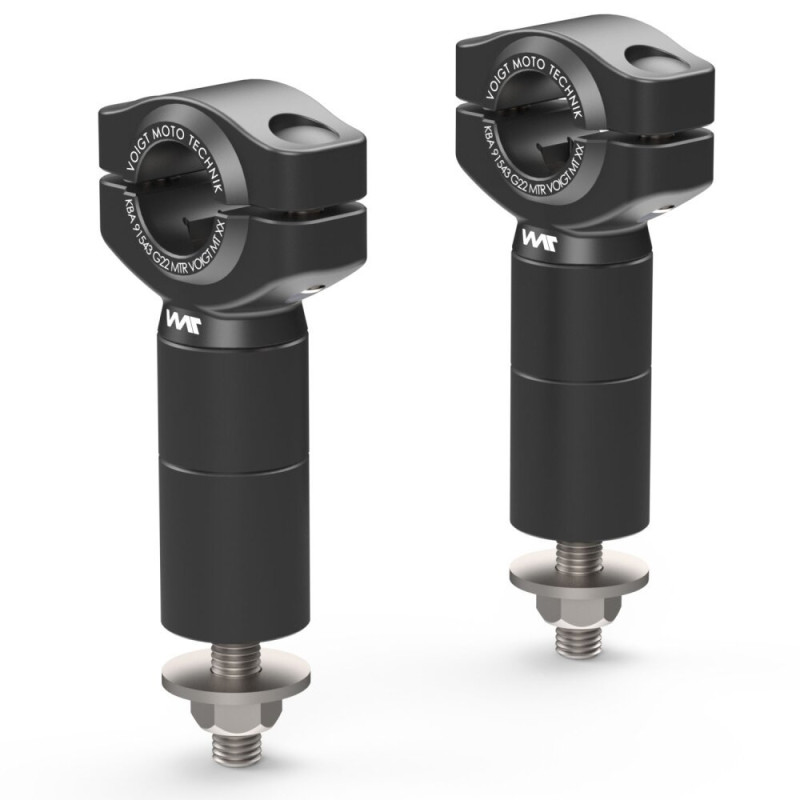

Voigt-MT Handlebar Risers adjustable G22 22mm (7/8" handlebar) | Black

Voigt-MT G22 Adjustable Handlebar Holder (Riser) for mounting on the fork bridge. These risers are mounted directly on the fork bridge. Different caps and screws allow for various heights to be set. Suitable for vehicles with M10 holes in the fork bridge and a handlebar diameter of ø22.2mm. The minimum height from the fork bridge to the handlebar diameter is approximately 29mm. With the included caps, a maximum height of about 90mm is possible.

Details:

- Adjustable height from 29 to 90mm from the fork bridge.
- Provides the opportunity to personally optimize the seating position.
- TÜV approved and supplied with ABE certificate.
- Increased safety through the BPS (bar protection system).
- CNC machined, glass bead blasted, and anodized.
- 5-year warranty.
- High-quality execution.

In the kit:

- Handlebar riser (set)
- Caps of 35mm and 25mm
- Mounting screws for handlebar clamp (4x M8x25)
- Mounting screws for riser (2x M10x120 V2A, can be shortened)
- Self-locking nuts (2x M10)
- Black screw caps (4x for M8)
- V2A U-rings (4x for M10)
- Installation instructions

Note: The length of the cables and lines must be individually checked and possibly extended.
