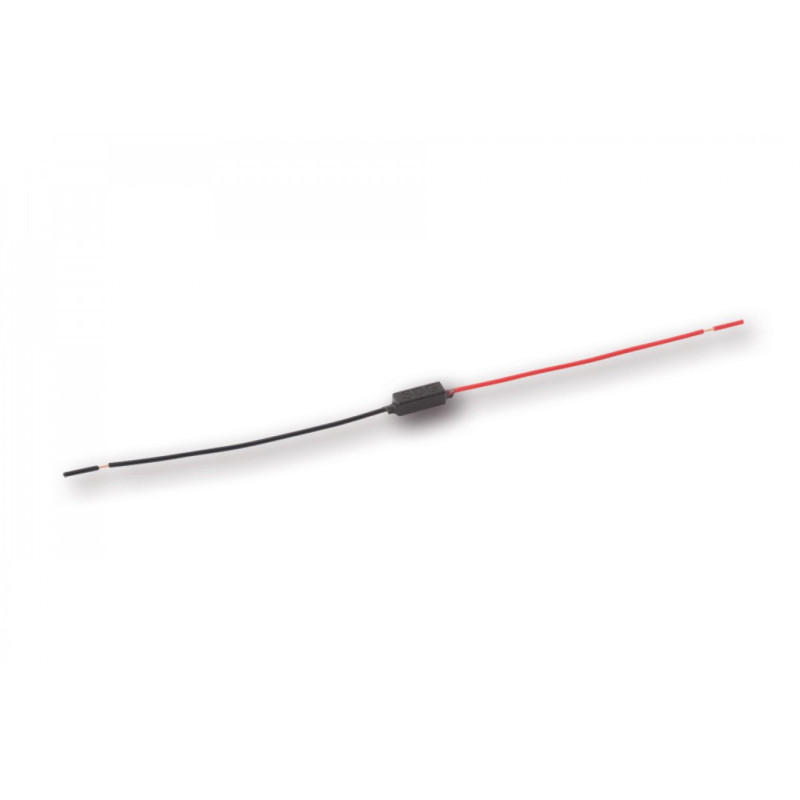

Highsider Relay Turn Signals LED Nano

Highsider digital flashing light relay PW-Nano. This digital relay is suitable for 8-18V and 0.1-21W per flashing light.

Characteristics:
- delivered per piece
- 8-18V
- 0.1-42W per side
- Small size, fits in frame tube or steerer tube
- Ensures an absolutely constant flashing frequency

Connect:
- Red cable: 12V (+)
- Black cable: ground (-)
- Can be connected in series

Remark:
- With various English brands such as BSA, Norton, etc., all consumers are connected to earth, with the positive connected to the frame. Therefore, when mounting this Nano relay, the black cable must be connected to the battery ground and the red cable must point in the direction of the switch.
- Not suitable for push button switches.
- Not suitable as a flashing relay set, which has a warning flashing function or other additional functions.
