Highsider Resistor LED Can-Bus

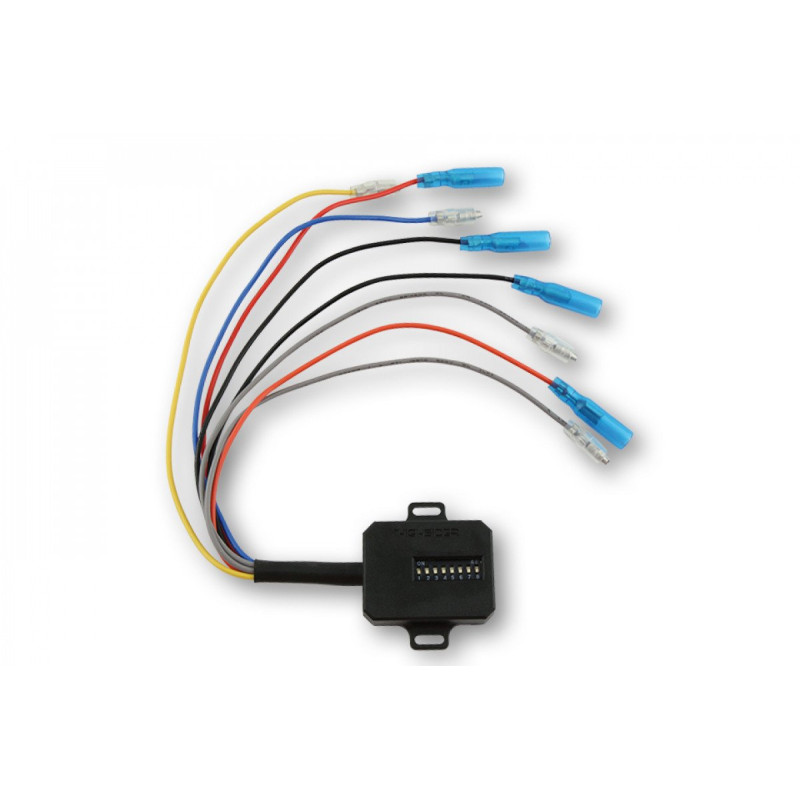

Highsider Can-Bus resistor CBW1 with DIP switches.

When changing the indicators on a vehicle with Can-Bus, an error message is immediately displayed in the computer. This resistor prevents the error message. You can operate two indicators with one resistor.

Characteristics:
- per Unit
- 8 adjustable resistance values (150/170/200/240/300/400/600/1200 ohm)
- For motorcycles with Can-Bus (including BMW)
- Operates 2 flashing lights
- HxWxL: 11x46x40mm
- Cable length 200mm

Connect:
Orange = Output channel 1 (+)
Blue = Input Channel 2 (+)
Red = Output channel 2 (+)
Red = Input channel 2 (+)
Black = Output channel (-)
