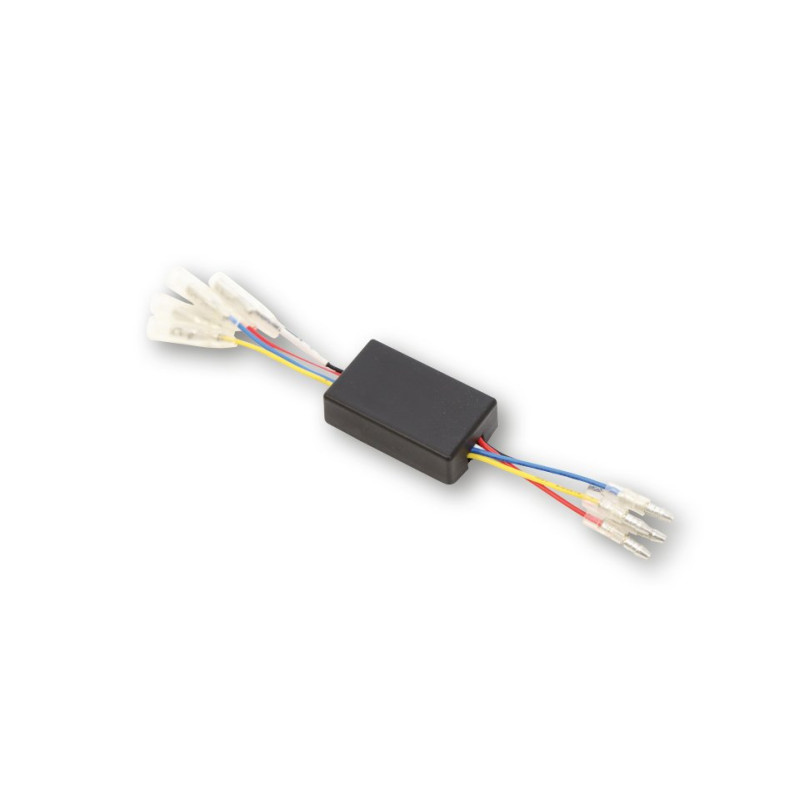

Highsider Control E-Box CB1

Highsider Control E-Box CB1. For switching Highsider LED headlight lighting without a separate light switch. This box ensures that the lamps alternate automatically. To use this product, a single switch still needs to be installed.

According to regulations, the daytime running light must be connected in such a way that it switches off automatically when the high beam is switched on. Since the main headlight is always on on vehicles without a light switch, the function of the HIGHSIDER daytime running light could not be used correctly.

Features:
- Per piece
- LxWxH: 48x28x14mm

IN (vehicle electricity):
Yellow = high beam (+)
Blue = low beam (+) ON/OFF switch between
White = parking lights (+)
Red = ignition 15 (+)
Black = earth (-)

OFF (headlights)
Yellow = high beam (+)
Blue = low beam (+)
Black = earth (- )
To the daytime running lights:
White = parking light (+)
Red = daytime running light (+)
